Laboratory and Pilot N10

NanoLyzer N10 Series

Laboratory, Pilot High-Pressure Homogenizer

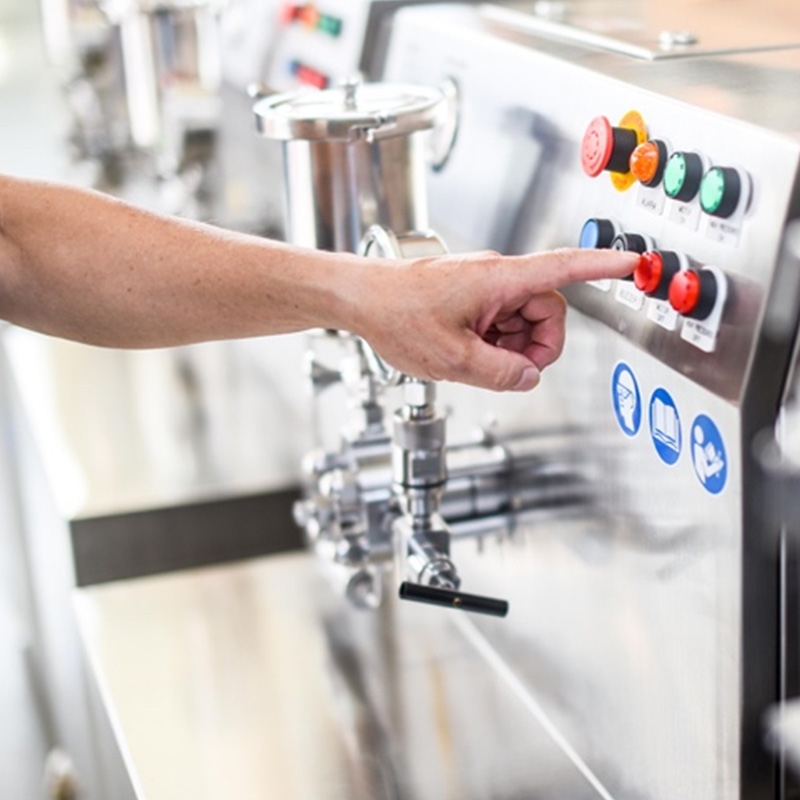

NanoLyzer N10 powered by electric-hydraulic system and equipped with fixed geometry diamond interaction chamber technology maximizes the energy-per-unit fluid volume, high shear levels typically enhance process efficiency by requiring fewer passes, resulting in uniform particle and droplet sizes. It reduces noise and a lot of power consumption caused by no compressed air requirements, oil temperature and drive pressure of hydraulic system can be monitored on the panel. NanoLyzer N10 is capable of processing a wide variety of fluids such as simple oil-in-water emulsions, solid–in-solvent dispersions and cell disruptions including the most difficult yeasts and algae cellsin 1-2 passes. Continuous operation at a pressure up to 30,000 psi, it is a wonderful model of high-pressure homogenizers to cover the purpose of laboratory to pilot production.


Pressure RangeUp to 30,000psi (2,068 bar)
Flow rateUp to 320 ml/min
Minimum Sample Volume300 ml, with heat exchanger
Max. Feed Temperature75 ℃
Power UnitElectric-hydraulic
Nozzle MaterialDiamond, fixed geometry
Plunger MaterialCeramic
EnclosureStainless steel
Hold-up Volume70 ml, with heat exchanger
Dimensions (W x D x H)800 x 750 x 1300 mm
Weight260 kg
Utility Requirements
‧ ElectricalThree phase 220/380 V, 60 Hz,5HP (3.7KW)
‧ Colling Water , hydraulic oil10 lpm @25 ℃, PT 1/2”
‧ Colling Water, product outlet20 lpm @16 ℃ PT 1/2”


Additional diamond chambers
Cooling bath for diamond chambers
Outlet Heat Exchanger
Various volume reservoirs
Pressure-type reservoir
Back Flushing
IQ/OQ Validation Documents
FAT/ SAT Factory and onsite acceptance test
Plunger Seal Quench
Extended Warranty Plan
